DESCRIPTION

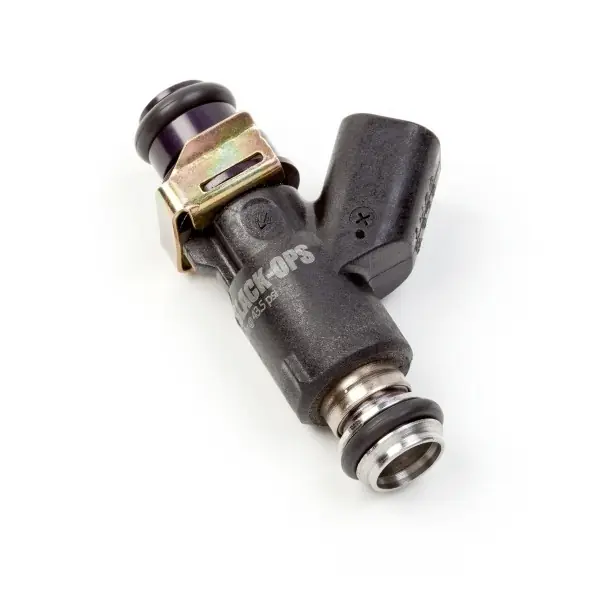

Upgrade the performance of your Volvo 3.0L 6-Cylinder engine by installing larger 630cc Injectors.
These larger 630cc fuel injectors are for Volvo 3.0L 6-Cylinder engines running turbochargers larger than the stock. These are custom built fuel injectors designed to offer top performance. Each injector is custom milled to 630cc/min, flow-matched EV14 fuel injectors for the Volvo B63 Series turbocharged 6-cylinder engines. Each injector is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3, 3.5, and 4 BAR at 25%, 50% and 100% for each injector. These injectors will support all gasoline’s, E10 (Ore.) or E85.
This injector will function at rail pressures in excess of 116 psi, 8 bar.
Excellent low pulse width response with predictable response down to 2 ms.
Injector Body Design: EV14, black composite
Spray Nozzle: One-hole disc
Electrical connector type: USCAR
Length: Built to Volvo Specs
Body Diameter: 17 mm
Resistance: 12.5 Ohms
Orings: 14 mm Viton o-rings are included for installation.
**Note: Special ECU Tuning is necessary when installing these Fuel Injectors to ensure the Air-Fuel Ratio is properly maintained.
