The only Honda engine designed to sit longitudinally for the rear wheel drive S2000 (named for it’s 1997cc displacement), this is Honda’s answer to 4 cylinder high performance, high engine rpm (8900 rpm factory redline). Similar to the K Series engine in terms of mechanical roller cam profiles and roller rocker followers, the S2000 engine is used in a variety racing applications. The F20C engine is found in the 00-03 USDM S2000 and the 00-05 JDM S2000 while the F22C is used to service the 04-up USDM chassis and has just replaced the F20C in the 2006 JDM S2000. Similar in terms of compression and cam specifications, the F22C features a longer stroke for added displacement and increased torque.

Normally Aspirated Applications

• Drop in cams that deliver spirited driving without requiring a valve spring change. Delivers double digit HP gains without modifications.

Turbo / Forced Induction Applications

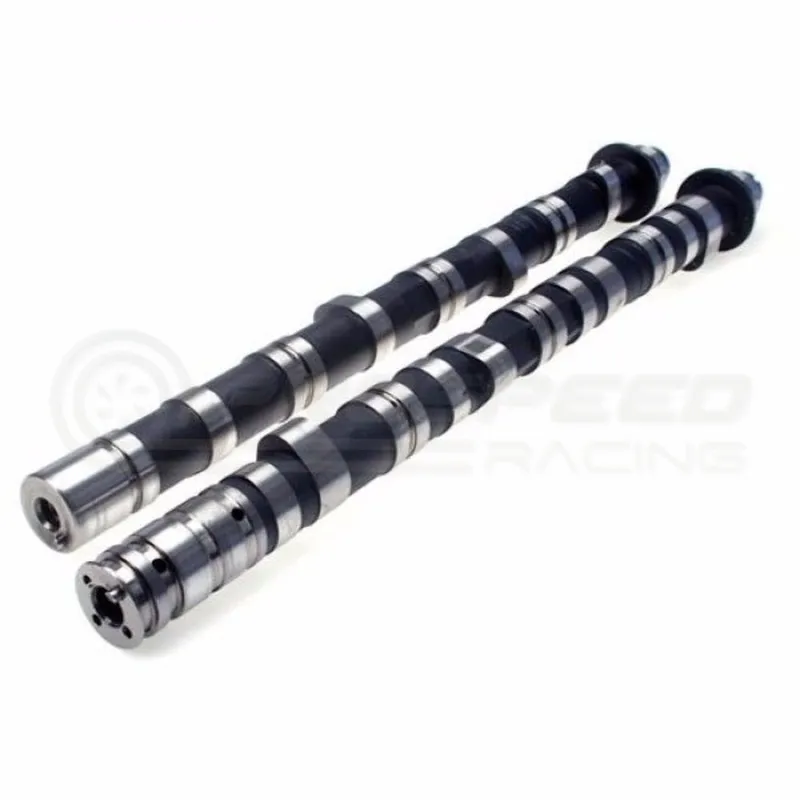

• The short duration and high exhaust lift, makes the BC0061 cams a perfect choice for forced induction engines. Use with BC0040 spring/retainer kit.

Notes:

• WARNING: If running a late model cylinder head (after 2004), you may need to purchase BC2940 keepers to accommodate the BC2010 or BC2011 retainers. Honda changed the keeper groove angles, therefore your stock keepers/locks may not fit the BC retainers properly causing potential damage.
• WARNING: Check rocker arm follower to cam lobe (mid lobe) clearance prior to operation. If rocker body/shrouding contacts lobe, clearance accordingly.
